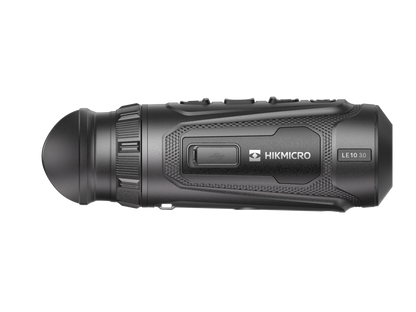

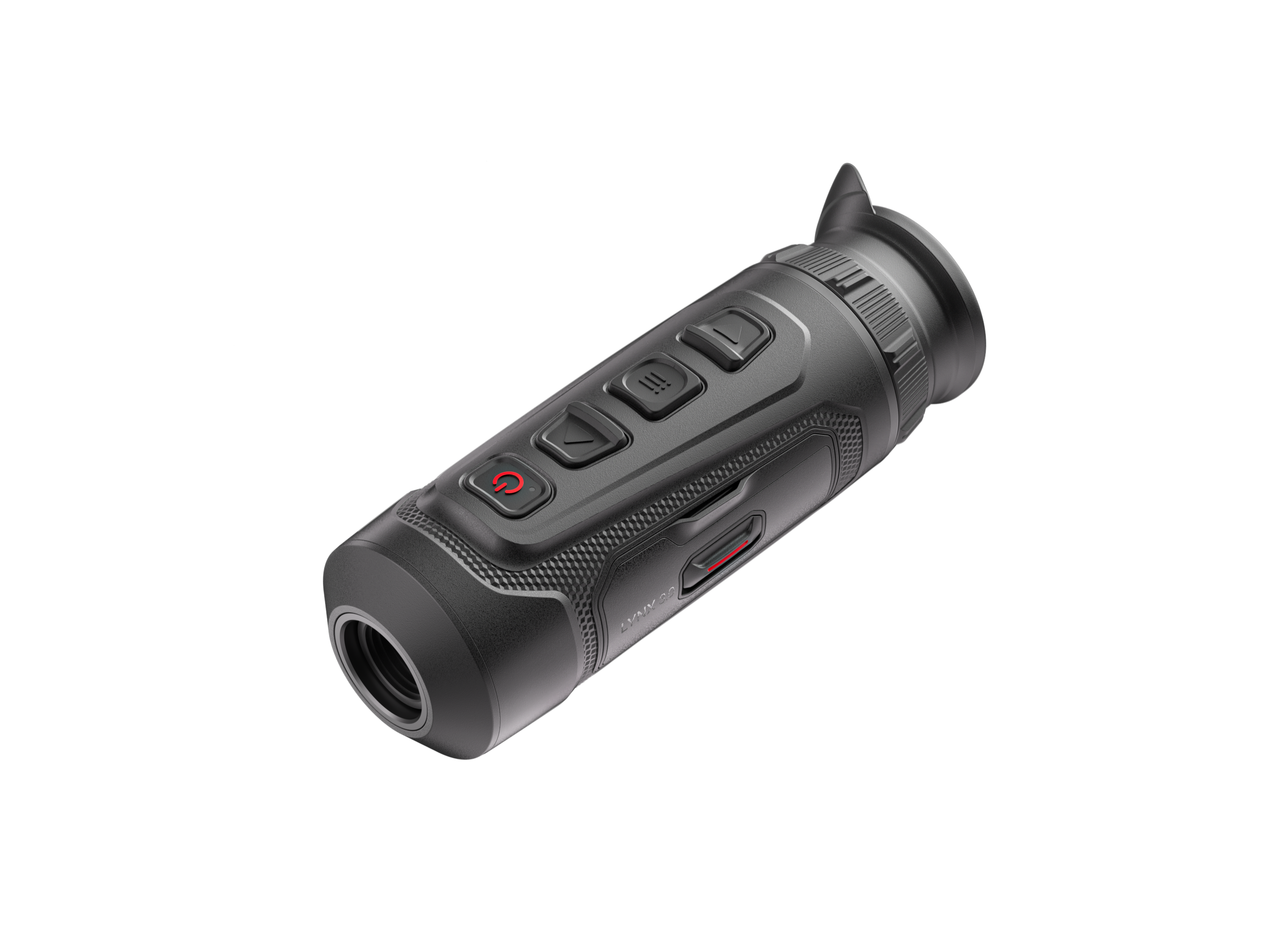

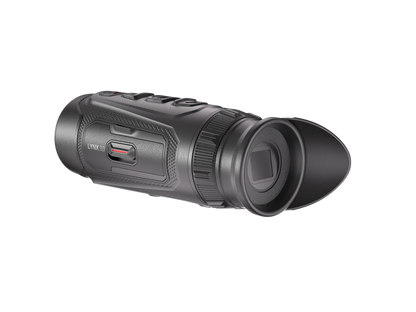

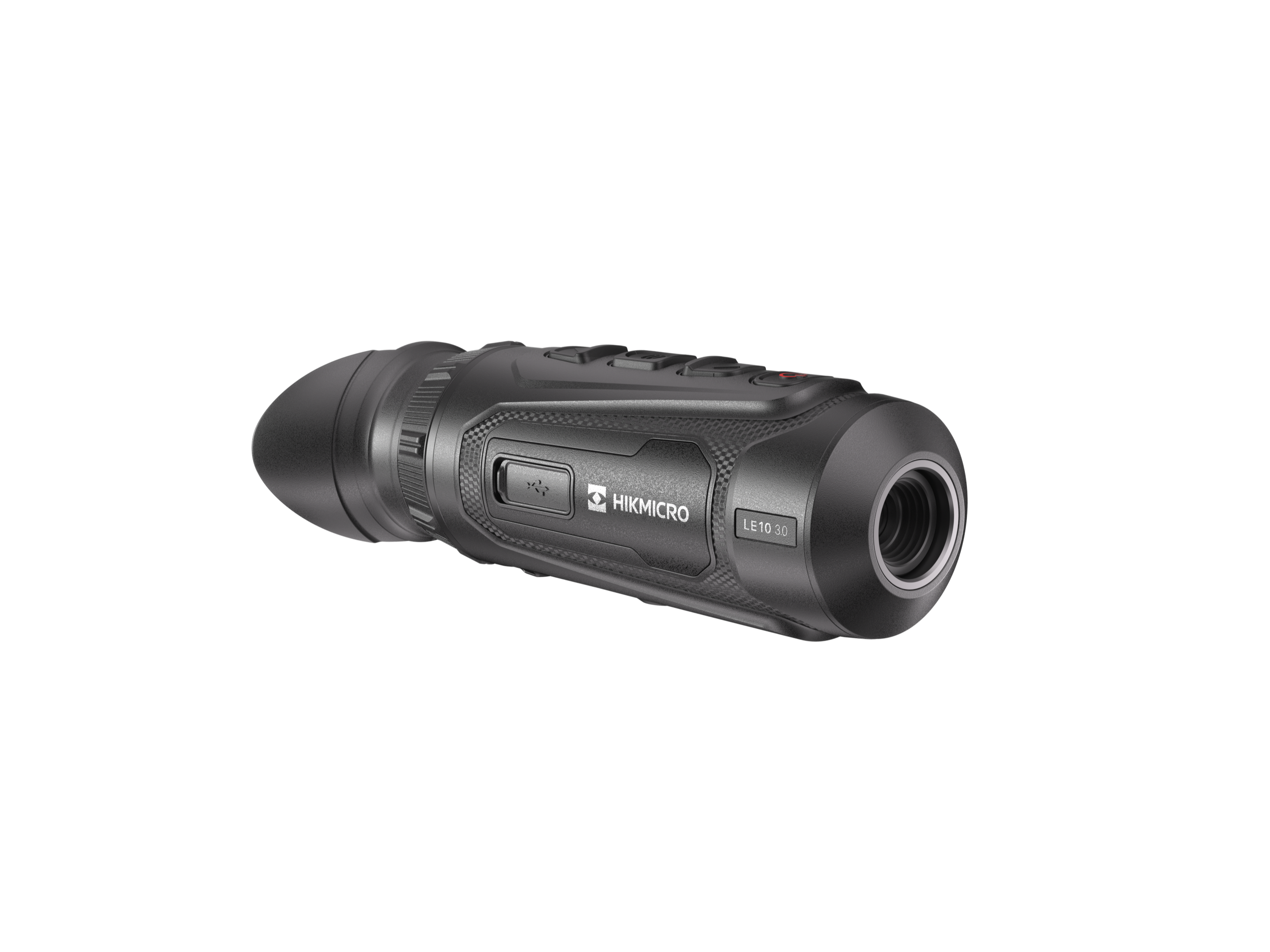

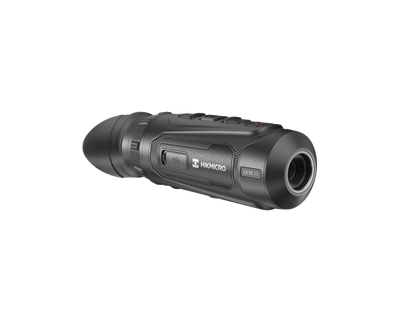

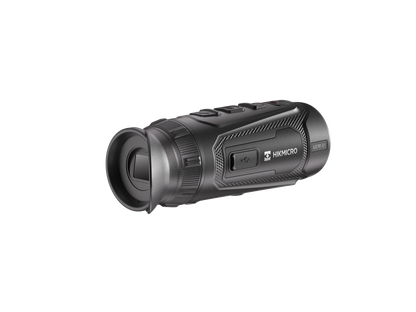

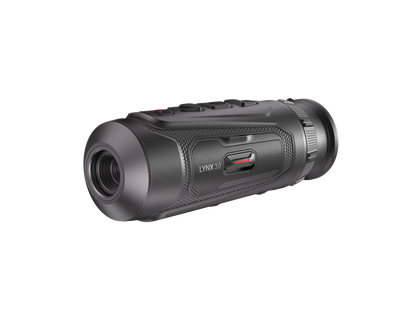

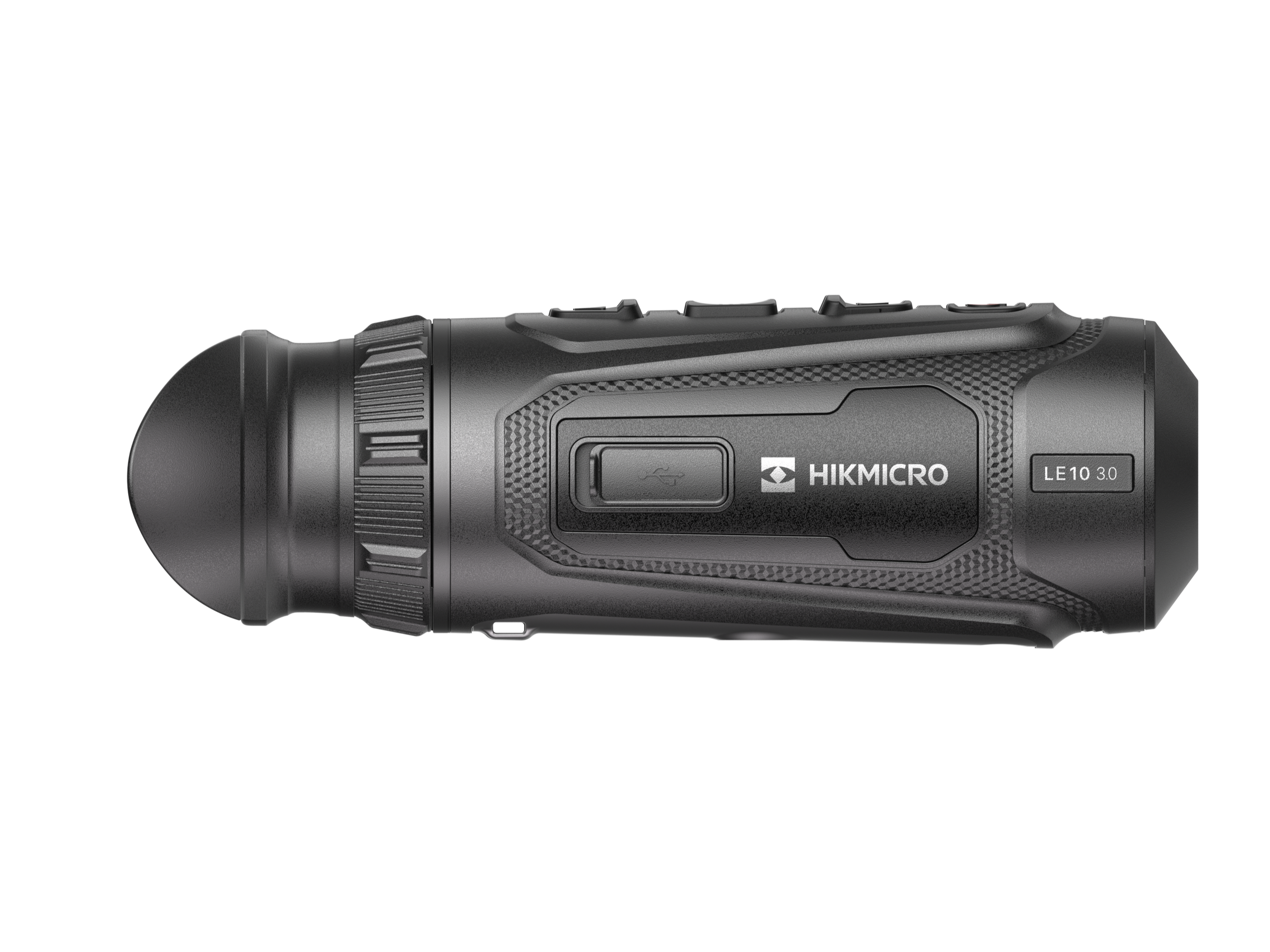

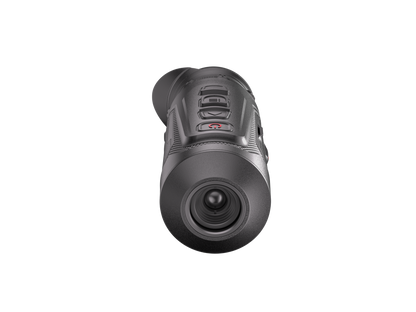

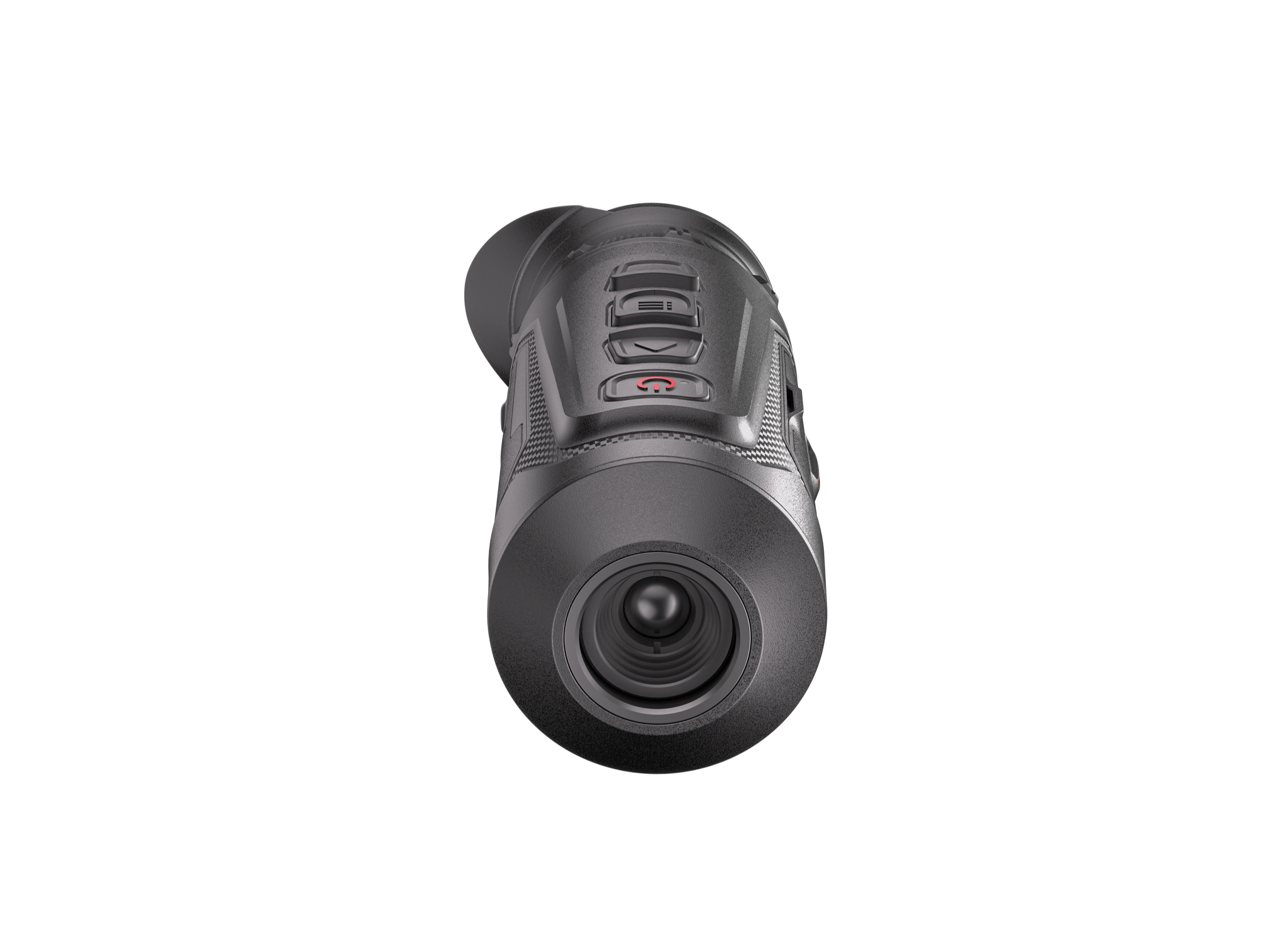

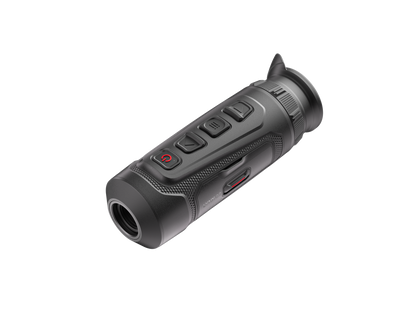

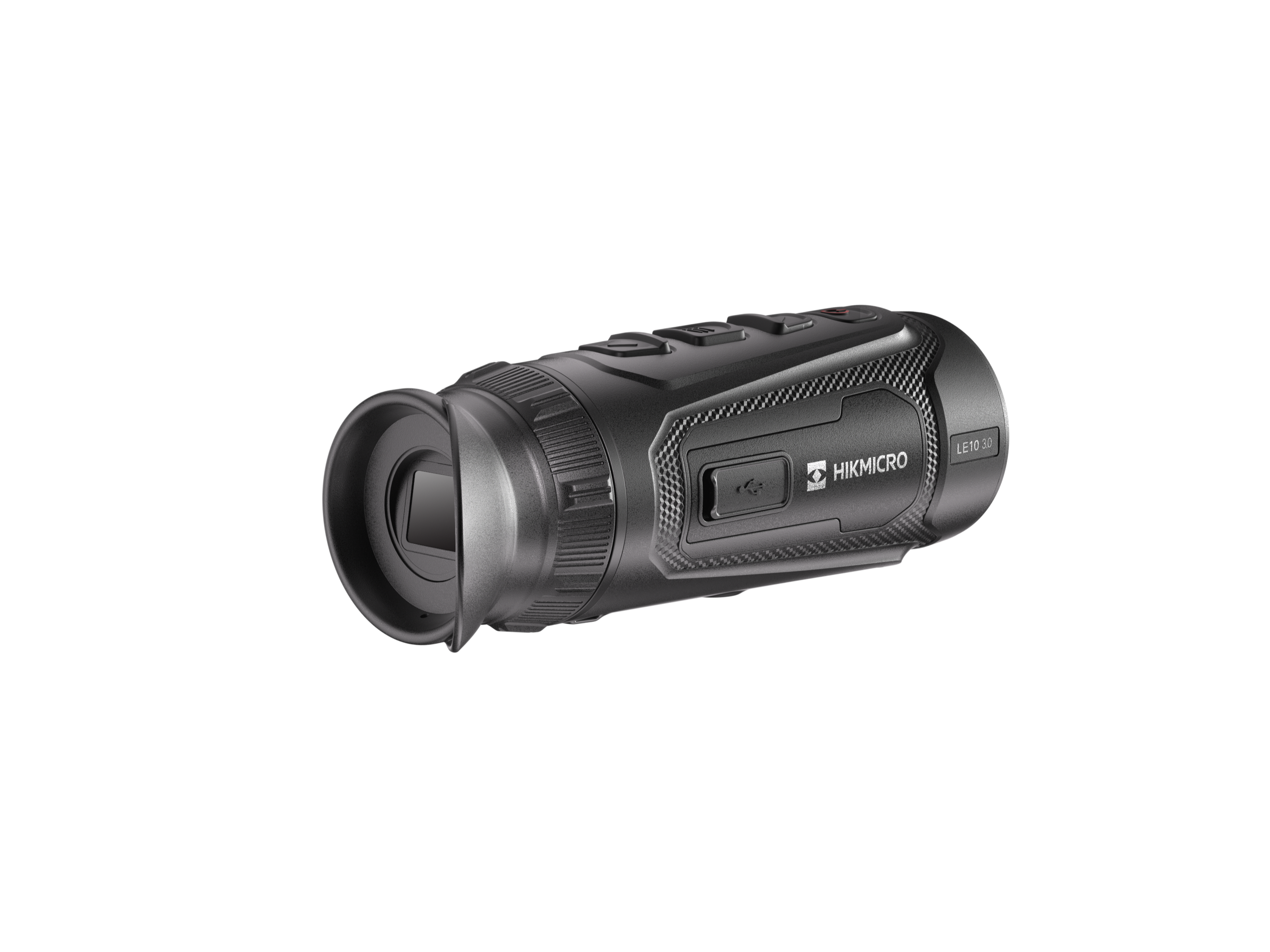

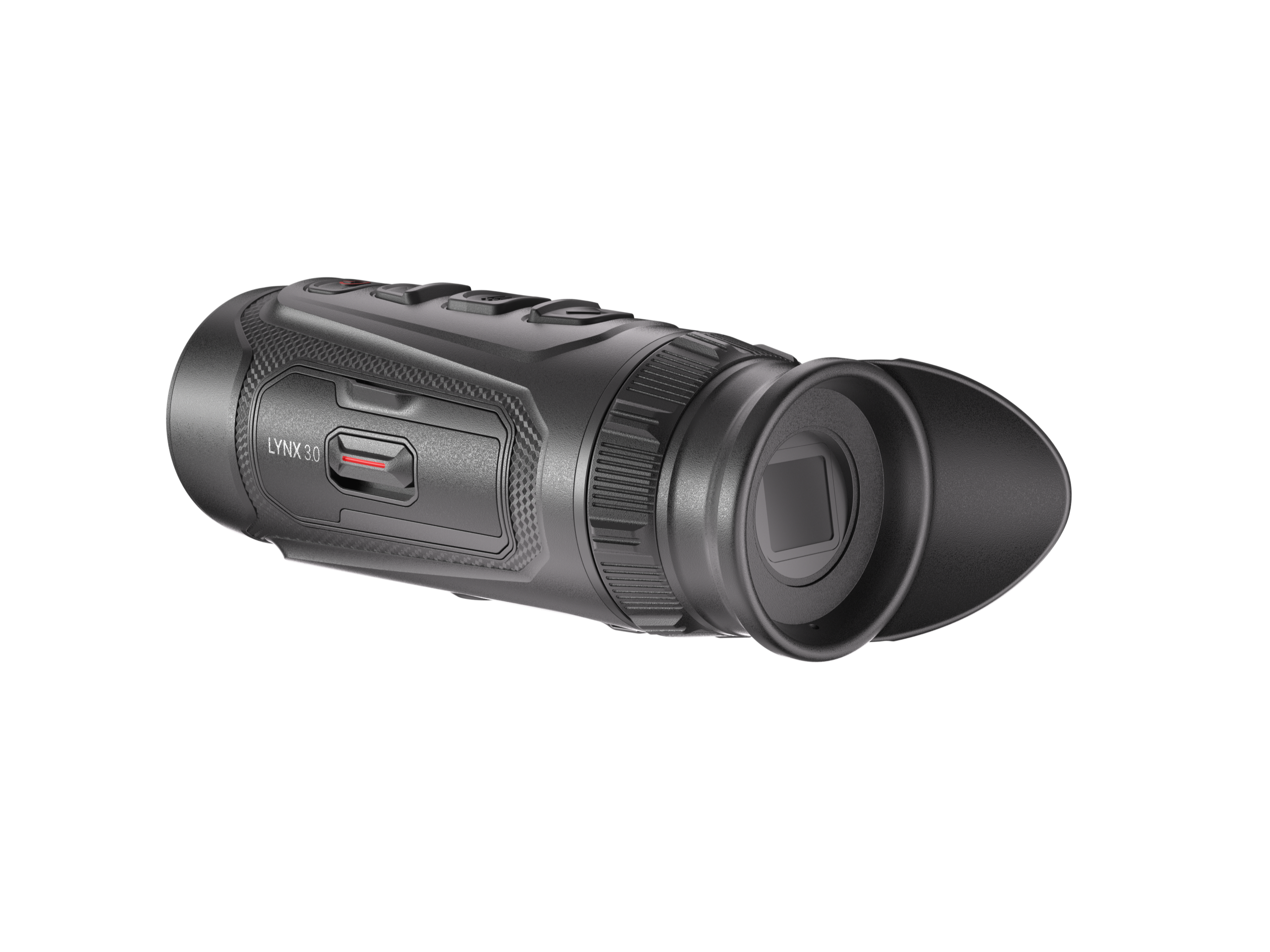

HIKMICRO Lynx 3.0 10mm Thermal Monocular LE10

The HIKMICRO Lynx 3.0 LE10 delivers professional-grade thermal performance in a lightweight, compact body. Built for hunters, security professionals, and wildlife observers, it combines a 256×192 thermal sensor, 9.7mm F1.0 lens, and NETD <20mK sensitivity to provide crisp thermal imaging out to 500 metres — even in fog, rain, or total darkness.

AI-powered Image Pro 3.0 and Sync Pro ensure consistent clarity and edge definition, while HSIS (HIKMICRO Shutterless Image System) provides silent, seamless viewing with no calibration interruptions. This makes the LE10 ideal for quiet operations like stalking, surveying, or patrolling.

Weighing just 291.5g and powered by a single replaceable 18650 battery, the Lynx 3.0 LE10 runs for over 5.5 hours, even at -20°C, making it the most reliable and value-packed entry-level monocular on the market.

🔍 Key Features

256×192 Thermal Sensor with <20mK Sensitivity
Capture subtle thermal differences with clarity in all weather conditions.

9.7mm F1.0 Lens with 500m Detection Range
Wide-angle lens offers exceptional situational awareness for scanning wooded areas or open terrain.

AI Image Pro 3.0, Sync Pro & HSIS
Advanced software ensures sharp, noise-free imagery and uninterrupted viewing — no shutter clicks, no pauses.

0.39” AMOLED Display (1024×768)
Bright, full-colour screen ensures accurate target identification even in total darkness.

Digital Zoom up to 11.2x
Base magnification of 1.4× with smooth 8× digital zoom for extended detail when tracking heat signatures.

Onboard Recording with Audio
Capture snapshots, record video with audio, and save directly to the built-in 64GB memory.

Wireless Sharing & Hotspot
Dual-band Wi-Fi (2.4GHz/5GHz) allows fast transfer to your phone or tablet for playback and sharing.

Pocket-Sized, Rugged Build
Compact design weighs just 291.5g with IP67 protection for all-weather use.

🛠 Technical Specifications

Sensor & Lens

• Resolution: 256 × 192 @ 12μm

• NETD: <20mK (@25°C, F1.0)

• Lens: 9.7mm F1.0

• Field of View: 18.0° × 13.6° / 31.7m × 23.8m @100m

• Detection Range: 500m

• Min. Focus Distance: 3.4m

• Focus Mode: Fixed Focus

• Magnification: 1.4× base, 8× digital (up to 11.2× total)

Display

• Type: 0.39” AMOLED

• Resolution: 1024 × 768

• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Mono, Green Mono

• Brightness / Contrast / Tone Adjustment: Yes

• Diopter Adjustment: –5D to +3D

• Exit Pupil: 6mm

• Eye Relief: 20mm

Features & Processing

• Image Pro 3.0 / Sync Pro: Yes

• HSIS (Shutterless): Yes

• PIP (Picture-in-Picture): Yes

• Hotspot / Wi-Fi: 2.4GHz & 5GHz

• Hot Track: Yes

• Distance Measurement: Yes

• Snapshot / Video Recording: Yes

• Audio Recording: Yes

• Local Album: Yes

• Storage: Built-in 64GB EMMC

Power & Durability

• Battery: 1× 18650 Replaceable Li-ion

• Runtime: 6 hours (at 25°C), 5.5 hours (at –20°C)

• Charging: Type-C (5V/2A) – supports external power & direct charging

• Protection: IP67 – Waterproof & Dustproof

• Operating Temp: –30°C to +45°C

• Dimensions: 152.4 × 53.6 × 49.5mm

• Weight: 291.5g (with battery)

📦 What’s in the Box

• HIKMICRO Lynx 3.0 LE10 Thermal Monocular

• 2× 18650 Batteries

• Battery Charger

• Type-C USB Cable

• Quick Start Guide

• Lint-Free Cleaning Cloth

✅ Warranty

• 3 Years – Main Unit

• Full UK Service & Support
  Hotline: 0203 514 0092
  Spares available at hikmicroassist.co.uk

💬 Why Choose the LE10?

From security patrols to stalking muntjac, the Lynx 3.0 LE10 offers thermal performance you can rely on — all in a compact, intuitive package. With modern algorithms, silent operation, and long battery life, it’s the perfect all-rounder for those entering the world of thermal optics or seeking a reliable backup unit.
