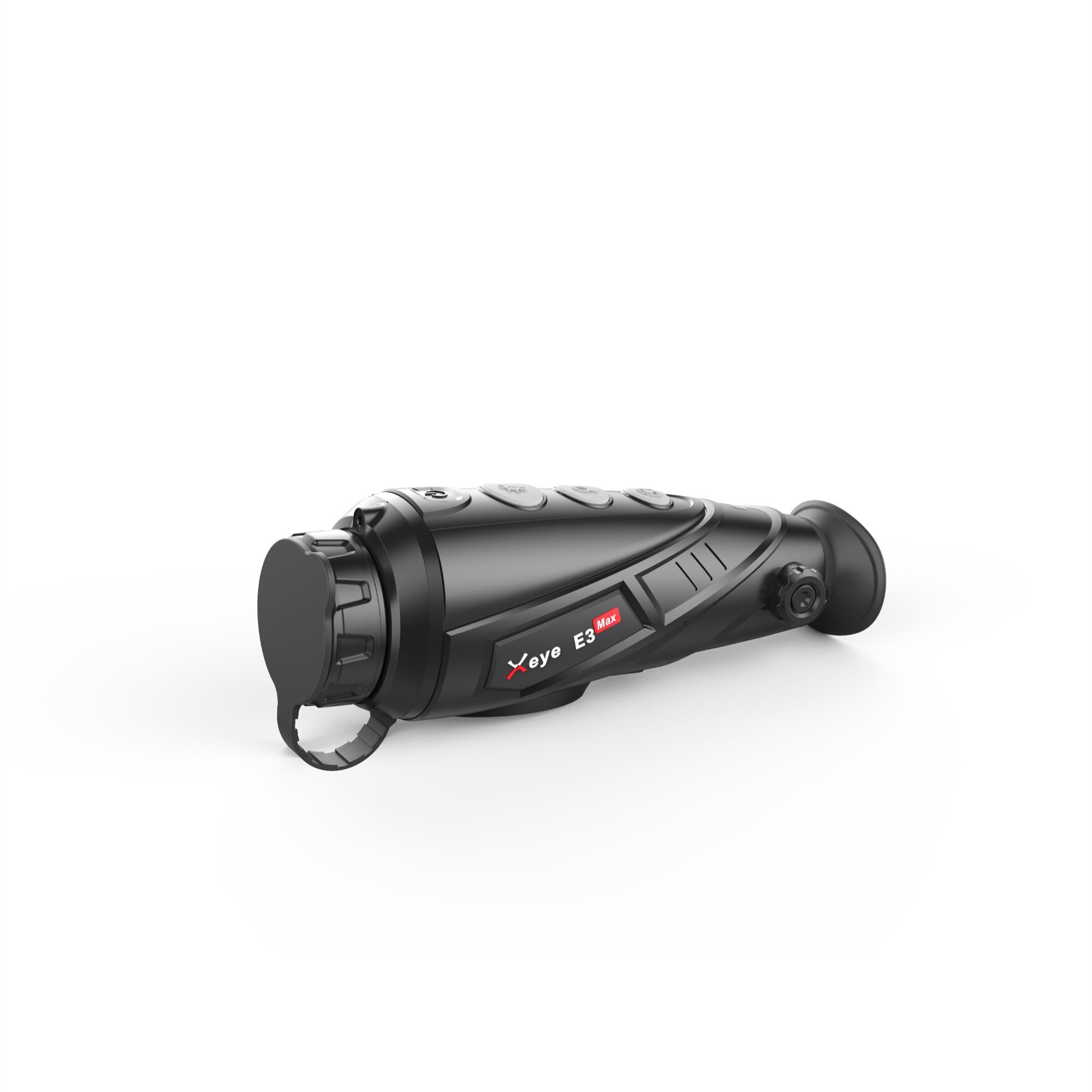

EX DEMO IRAY INFIRAY THERMAL SPOTTER EYE 2SERIES V2.0 E3 MAX

Description

EX Demo Iray Infiray Thermal Spotter Eye 2Series V2.0 E3 MAX Specifications

• Model E3 Max V2.0
• Resolution, pixels 384×288
• Pixel Size, μm 12
• NETD, mk ≤40
• Frame Rate, Hz 50
• Objective Lens, mm 35
• Field of View 7.5°×5.7°
• Display 1280×960 LCOS
• Optical Magnification, x 3.5-14.0
• Digital Zoom, x 2x – 4x
• Max. Battery Life, h 7
• Built in Memory (gb) 16
• Dimension, mm 185x65x64
• Weight, g <420
• Detection Range, m 1818

High Image Quality The Eye? series are embedded with IRay independently developed high performance Vox detector which allows you to get high detailed thermal images, it will be much simpler to search targets in darkness.  There are two kinds of detector resolutions for options: 384*288 & 640*512. The Eye? series has excellent performance in critical temperature range.

HD Micro Display    1280×960 high resolution display that offers crisp image and vivid colours.  Long Detection Range Depending on model, the V2.0 series is capable of detecting an average human-size target, dressed in outerwear, at a range up to 2600m in complete darkness.

EX Demo Iray Infiray Thermal Spotter Eye 2Series V2.0 E3 MAX Standby Function

When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again). High Image Frequency And the 50Hz refresh rate guarantees you to capture every moment that you are interested. PIP Functions Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target while retaining the rest of the field of view visible. 5 Colour Palettes The Eye II series provides more than 5 colour palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “colour” and “hot target highlight”. Switching between different colour palettes is fast and easy.

Stadiametric Rangefinder Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.

Hot Target Tracking Track the hottest spot in the scene automatically and discover the target quickly.

Built-in Video Recorder and WiFi Connection The monocular has 16 GB build-in memory to store the captured still images and video recording and WiFi module which allows 4 connections simultaneously.
