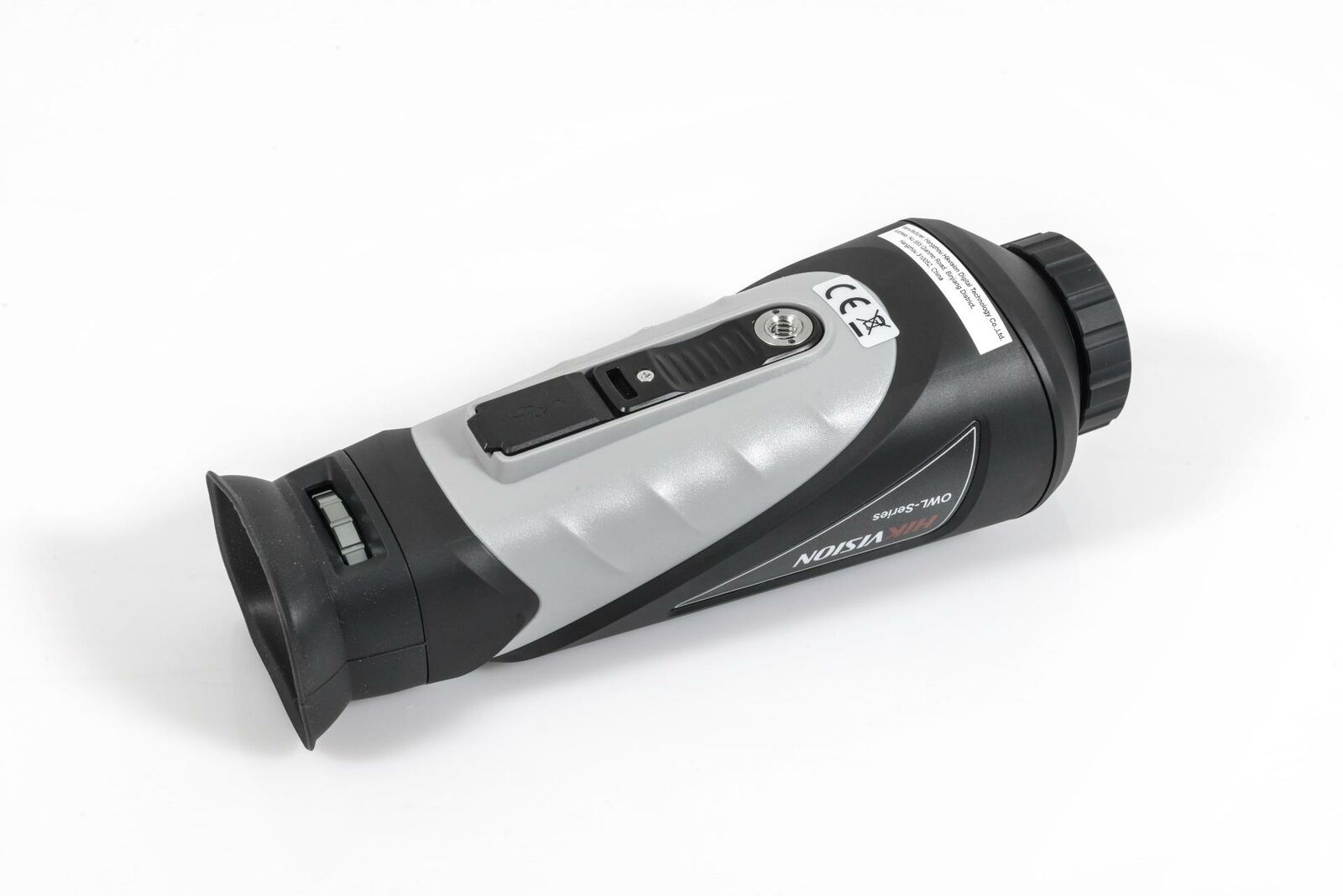

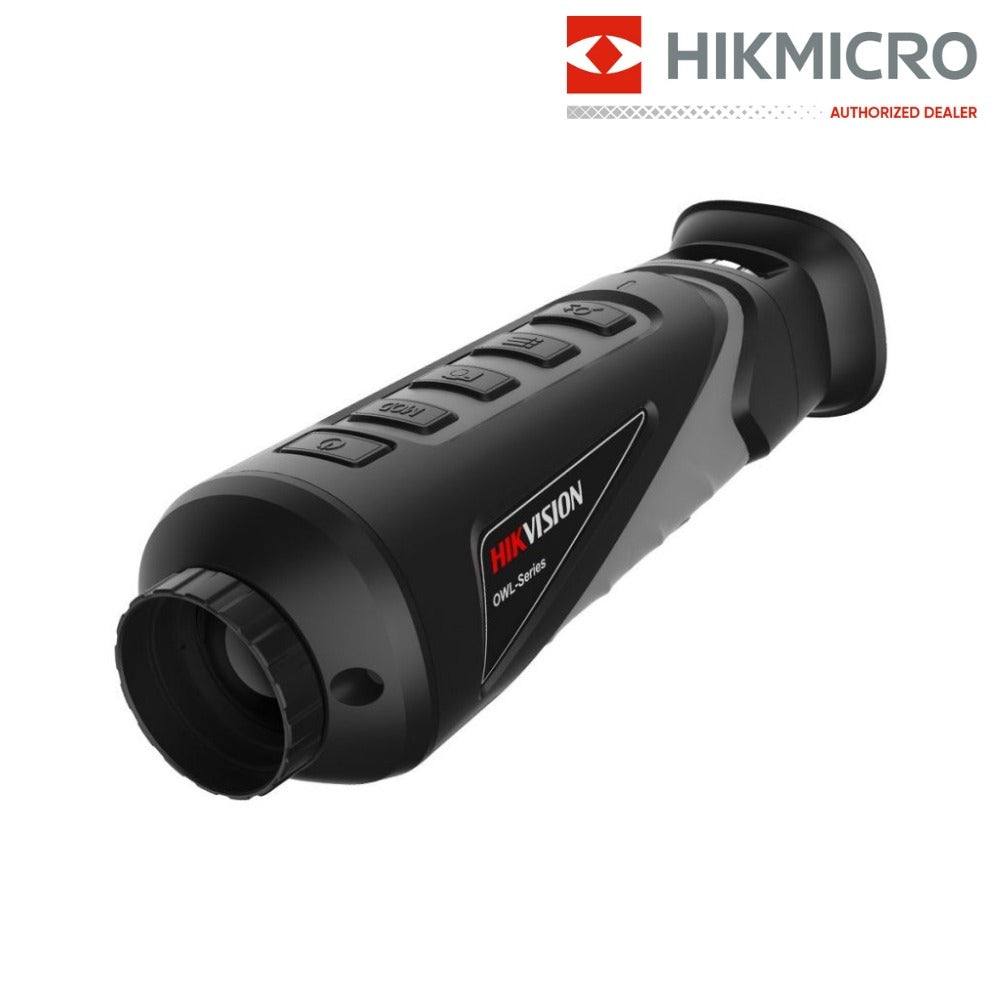

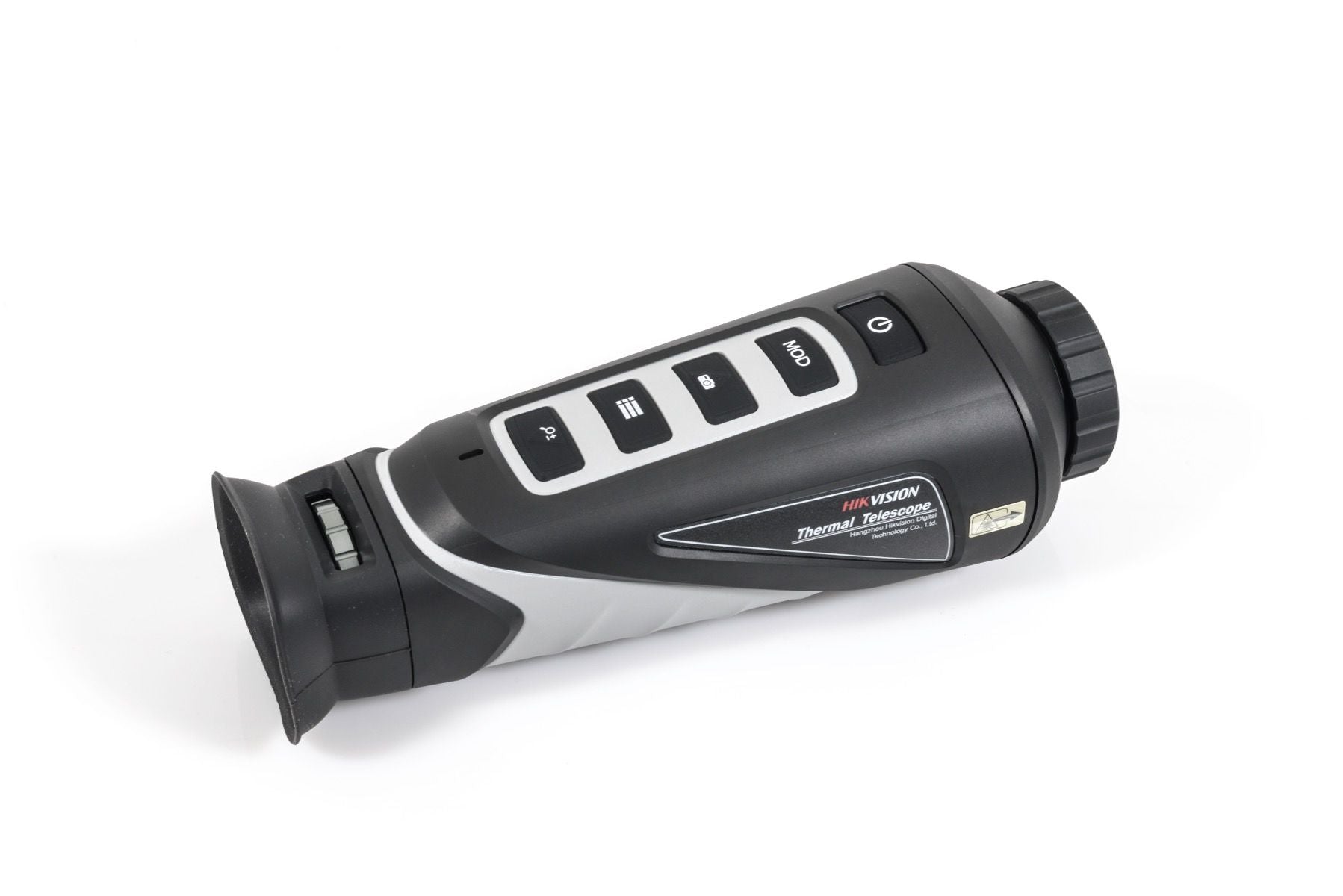

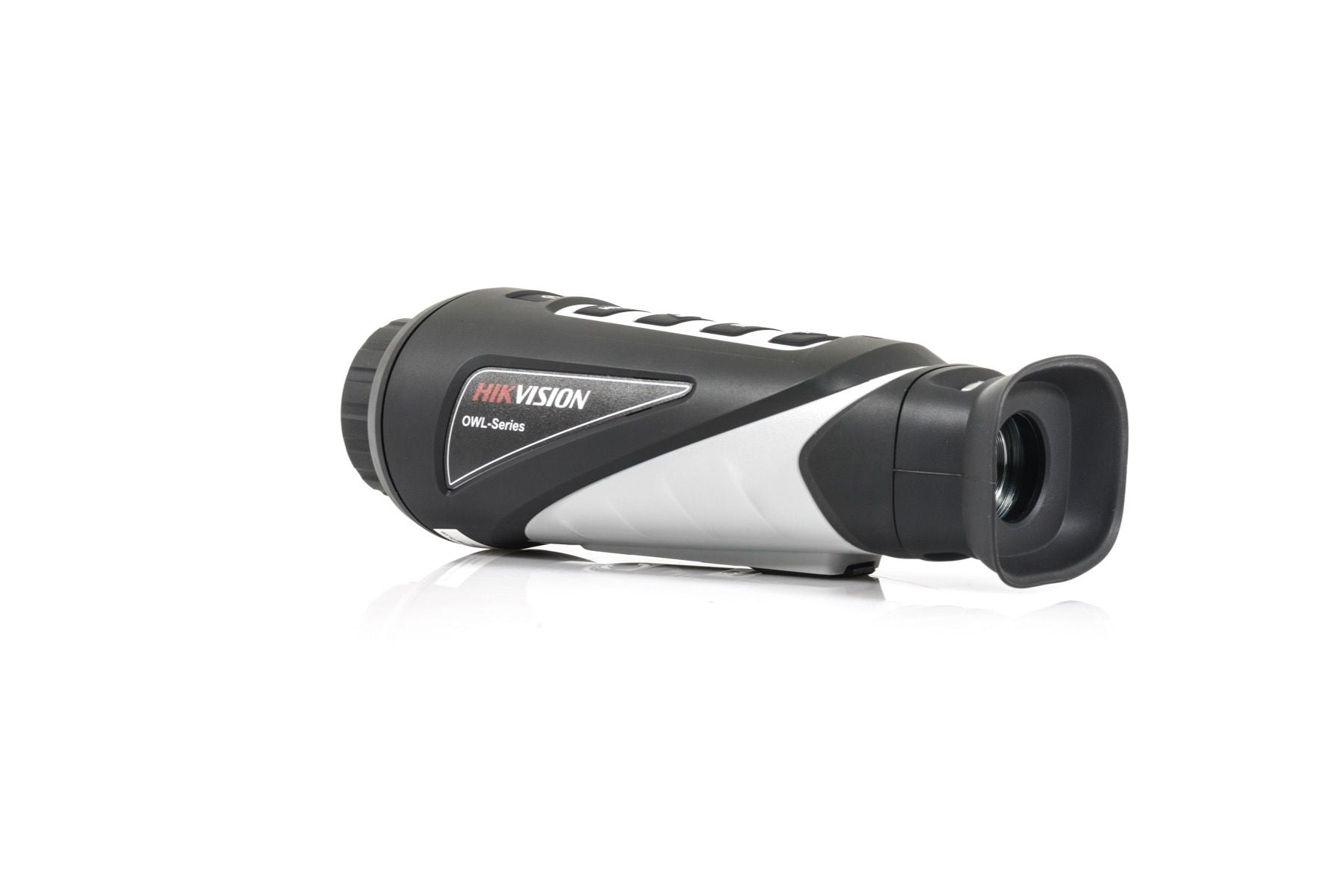

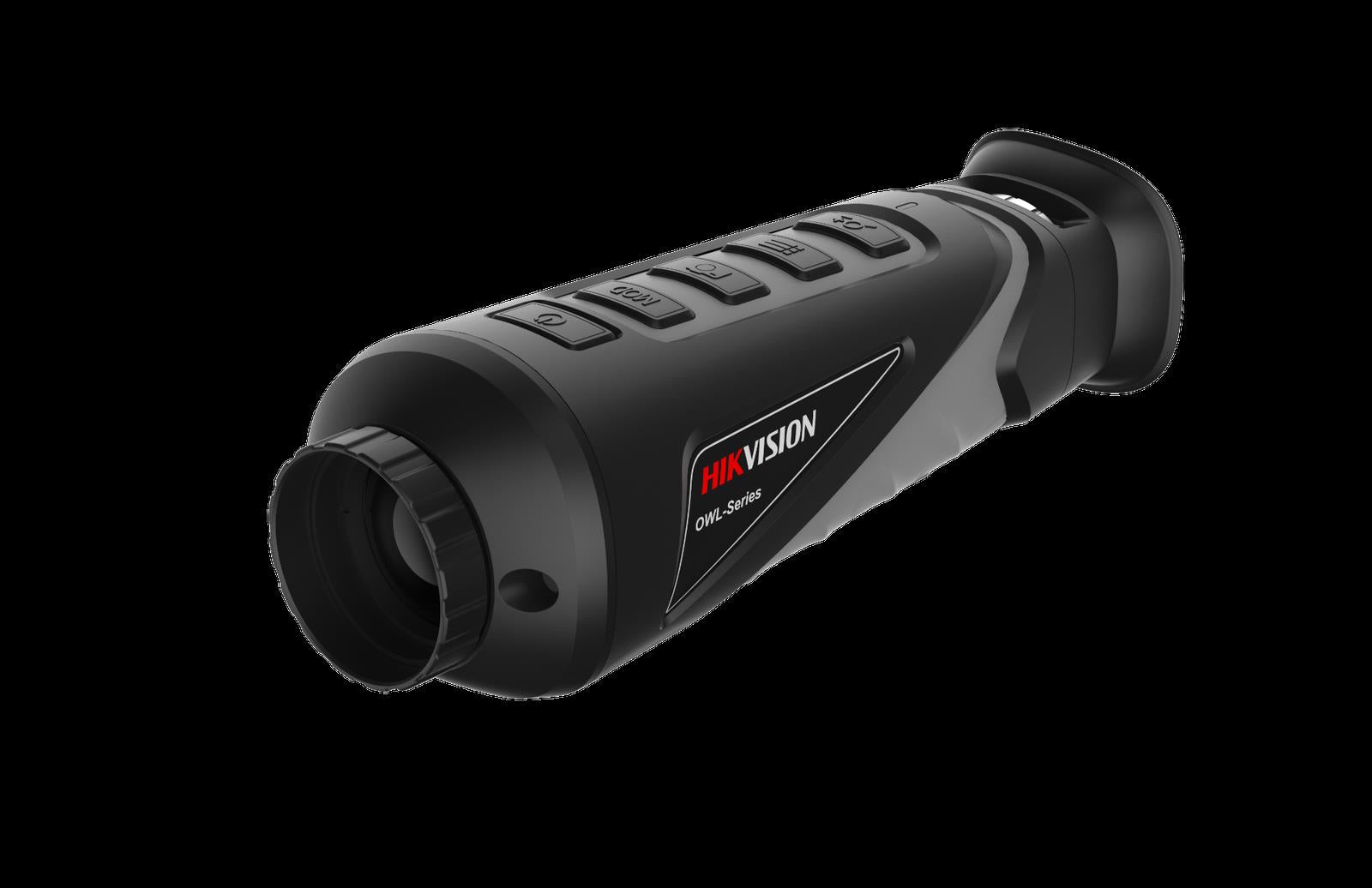

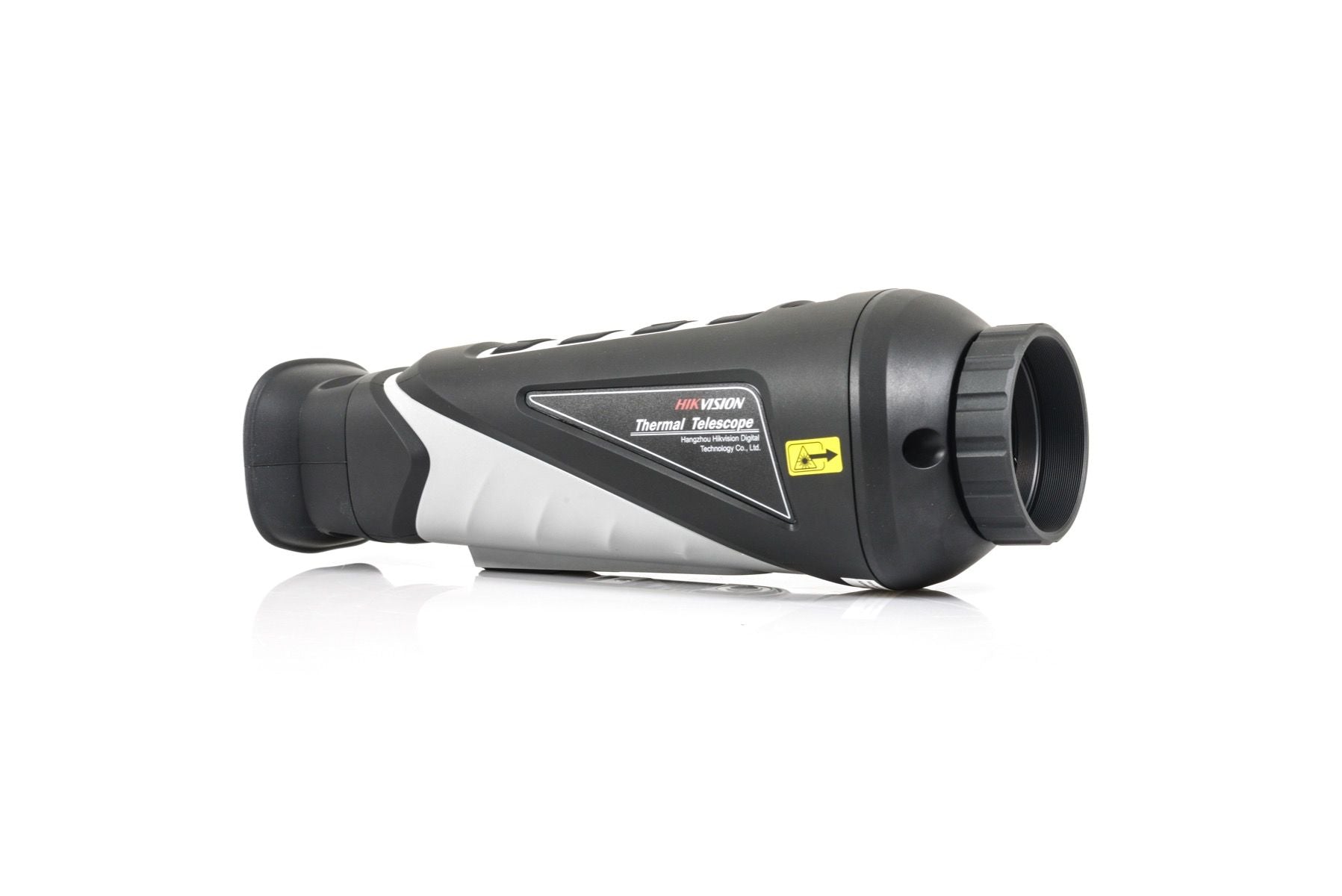

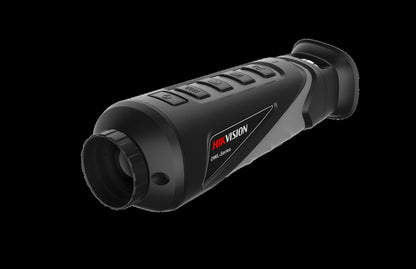

HIK Vision Vulcan 35MM 35MK Smart Thermal Monocular

HIK Vision Vulcan 35mm 35mK Smart Thermal Night Vision Wi-Fi & App Linked Monocular

This monocular delivers is a high quality, thermal imaging system. The high resolution 384 x 288, 17µm thermal sensor (35mK NETD rating) and HIK software delivers a detailed image to the generously sized and easy-to-view screen. HIK is the world’s largest manufacturer of CCTV and security cameras, so rest assured you are purchasing a top quality, tried and tested product. There are four colour palettes available, which optimises brightness and contrast controls. There is also inbuilt WiFi and a dedicated app to enable you to take complete control of the units settings and features from your smartphone. (Please note Hot Track is only feature that cannot be controlled from phone, that is unit menu only). The IP67 rating also guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather. All of this is secured with a 3-year warranty!

35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

Features

• High-quality, lag-less video stream to share your hunting and wildlife observation views with friends.
• Record and capture images straight to your phone.
• Configure and optimise the device: colour profile, fine-tune brightness and contrast.

• HOT TRACK - Activate Hot Tracking and your Vulkan 15 will highlight the hottest spot detected in the current frame with a green crosshair. This is useful to highlight small heat sources as you scan around. This feature is activated and deactivated in the unit menu not via the App.

Specifications

• Unit Type: Thermal

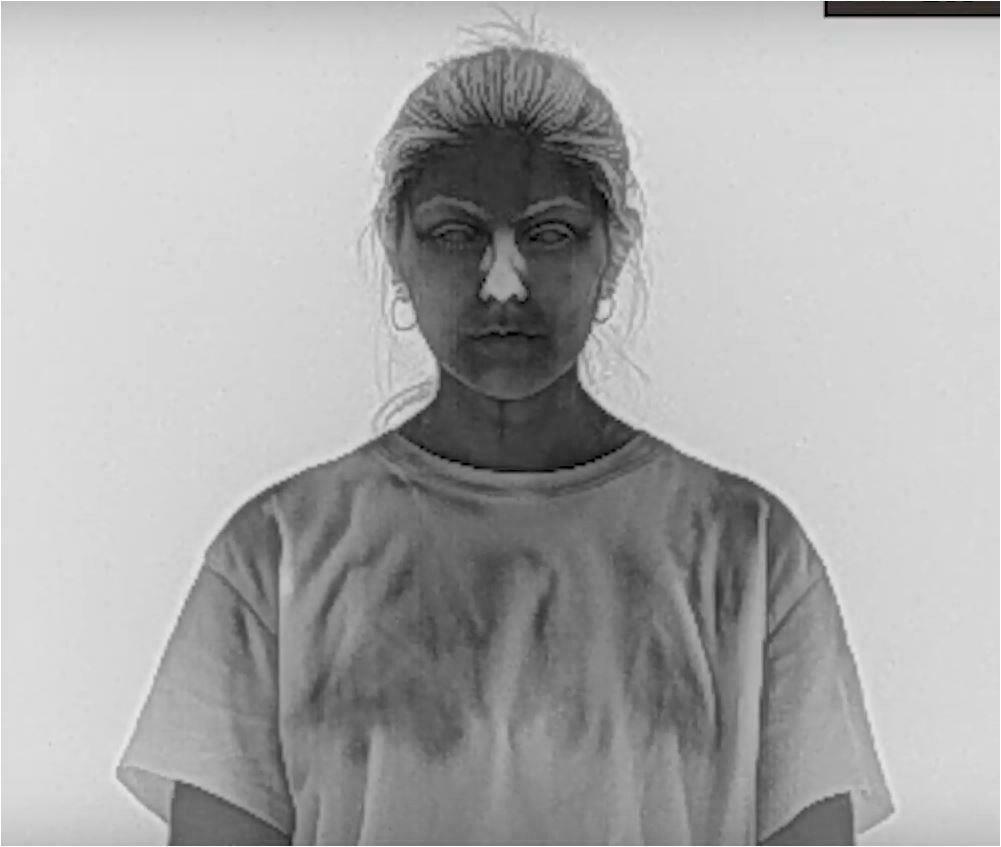

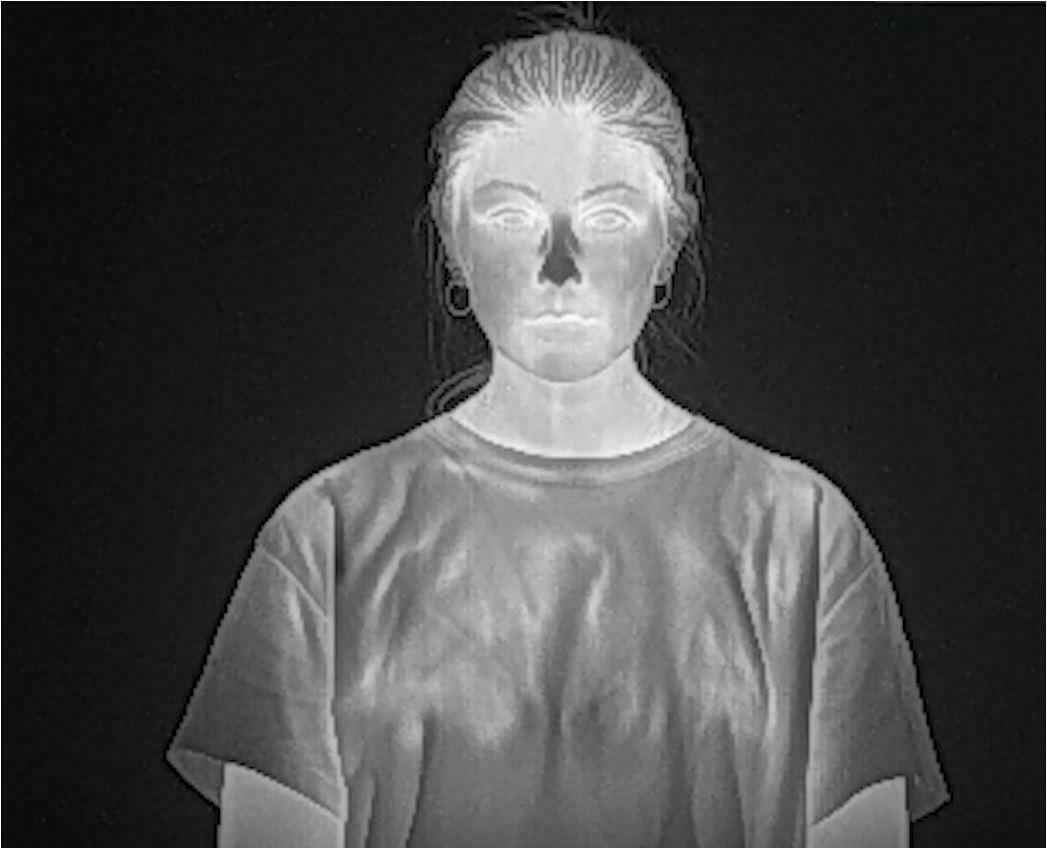

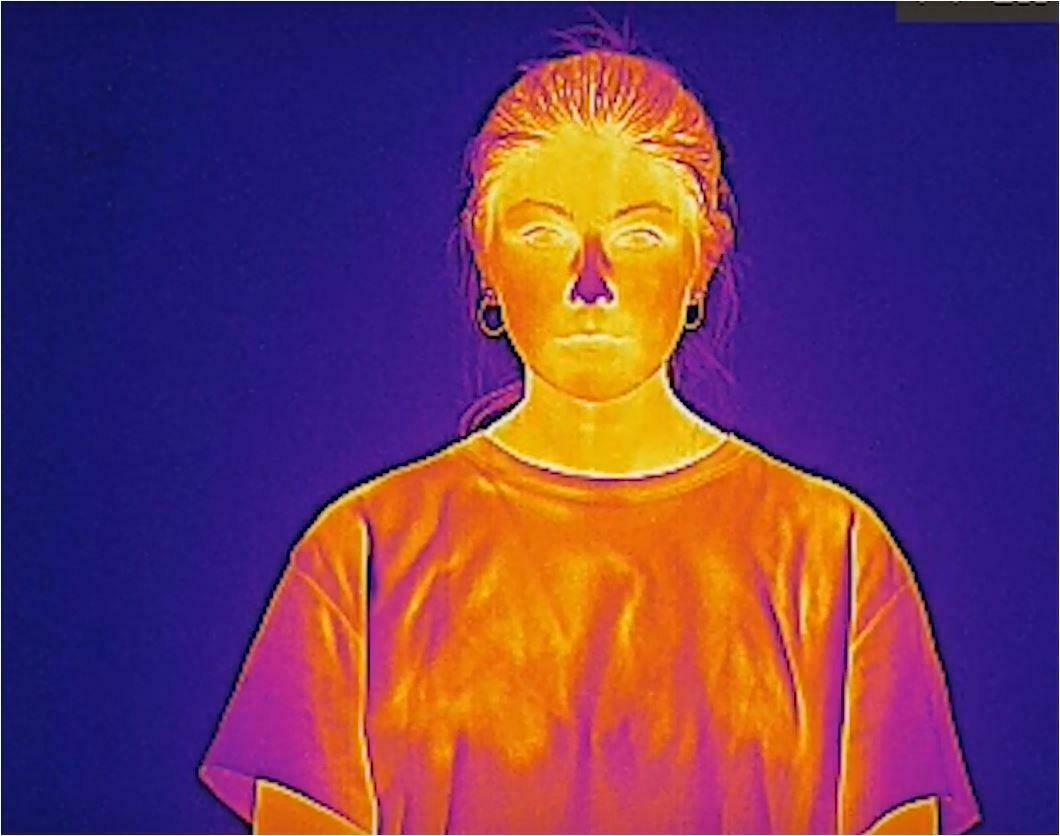

• Colour Palettes: Yes
• Detection Range: 1029m (human)-3157m (vehicle)
• Display Resolution: 1024x768
• Display Type: OLED
• FOV @ 100 yards: 10°
• Magnification (Digital): 1,2,4x
• Magnification (Optical): 2.36x
• NETD: <35mK
• Objective Lens Diameter: 35mm
• Operating Temperature: -30/+55°C
• Pixel Pitch: 17μm
• Rangefinder: Stadiametric
• Refresh Rate: 50HZ
• Sensor Resolution: 384x288
• Video Recording: Yes
• Wi-Fi: Yes

Detailed Specifications

MAIN Sensor 384×288px @ 17µm Objective Lens 35 mm Detection Range (Vehicle 1.4 x 4m) 3157 m Detection Range (Human 1.8 x 0.5m) 1029 m SENSOR Type Vanadium Oxide Uncooled Focal Plane Arrays Resolution, pixels 384 × 288 px Pixel pitch, µm 17µm Frame rate, Hz 50 Hz NETD Rating 35mK OPTICS Objective lens F1.0 Magnification (Optical) 1x Magnification (Digital) 1x, 2x, 4x, Field of view 10.66° × 8° (H × V) DISPLAY Type 9.9mm, OLED Resolution, Pixels 1024 × 768 Colour Palettes Black Hot, White Hot, Red Hot, Fusion VIDEO & SOUND Video Recorder YES Sound Recorder NO Build in memory, Gb 16 Gb ADDITIONAL FEATURES Hot Tracking YES WiFI hot spot YES T-Vision App support YES ENVIRONMENTAL Degree of protection, IP code IP67 Dust protection Protected against dust ingress Water protection Protected against temporary submersion in water Operating temperature range -30 °C to 55 °C WEIGHT & SIZE Dimensions, mm 189 mm × 74 mm × 66 mm Weight, kg 0.46 kg POWER SUPPLY Operating time on battery (WiFi & Hot tracking disabled) 5 hours continuous running Charging interface USB-C Battery capacity after 1000 cycles 80%

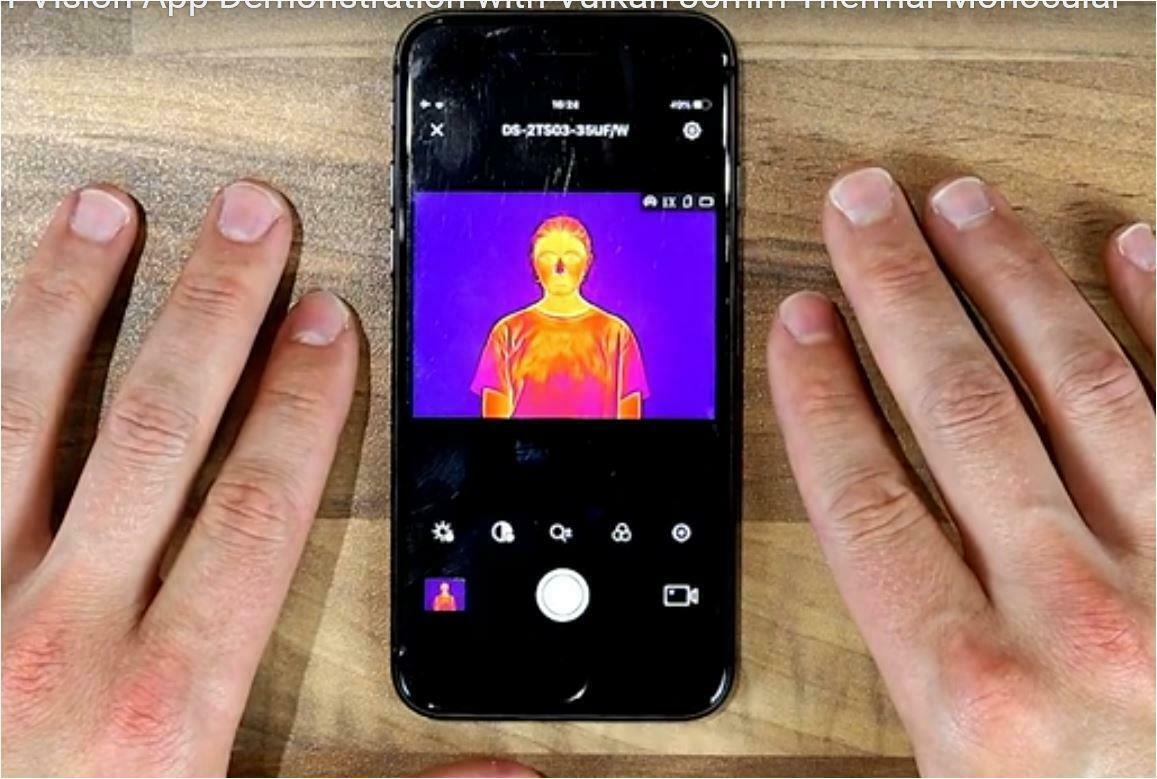

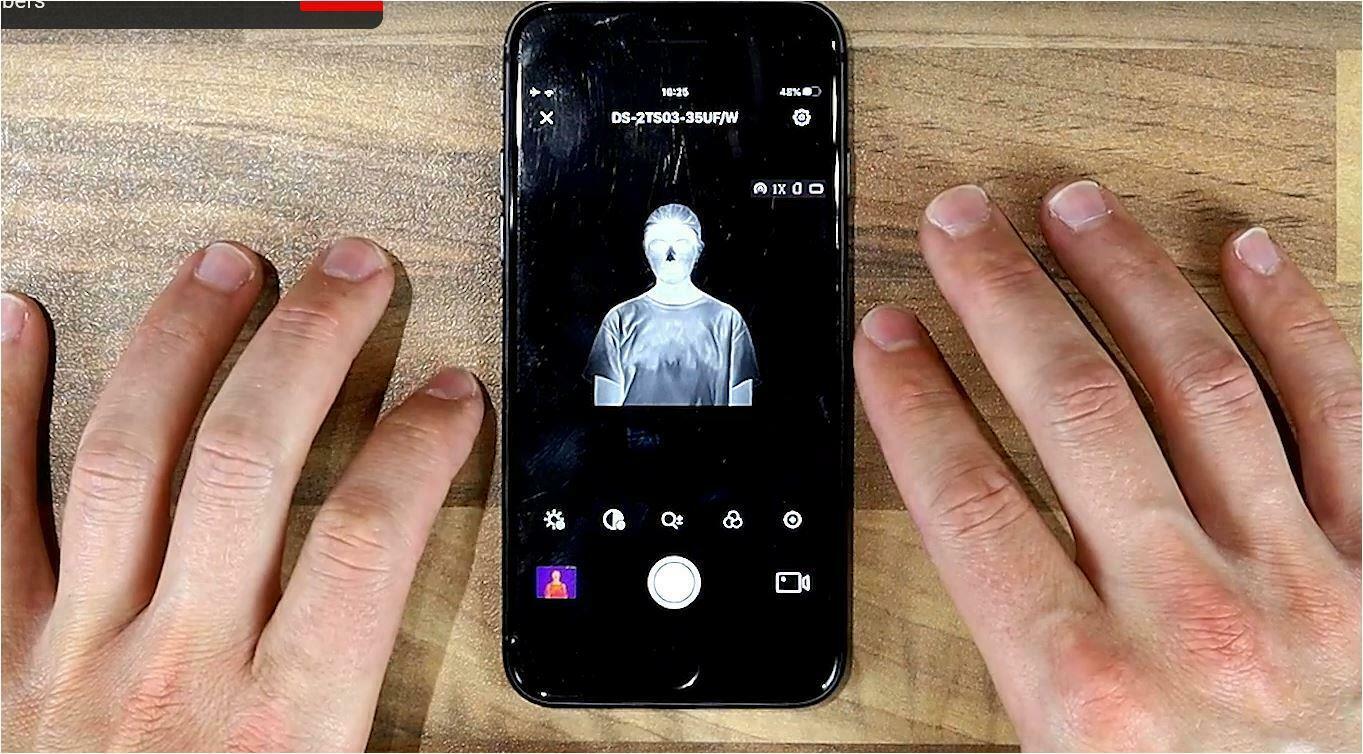

T-VISION APP: Connect – Control – Stream The Wi-Fi and App allow you to connect your smartphone and take control of all features of the HIK Vulkan Smart Thermal Monocular.

The T-Vision app allows you to stream the output in real-time allowing you to share your viewpoint with a friend.

For full video demonstrations, see the links below!

Download the HIK App here: https://www.hikvision.com/en/support/download/software/t-vision/

Videos - copy and paste links to a new window as we cannot put live links inside ebay

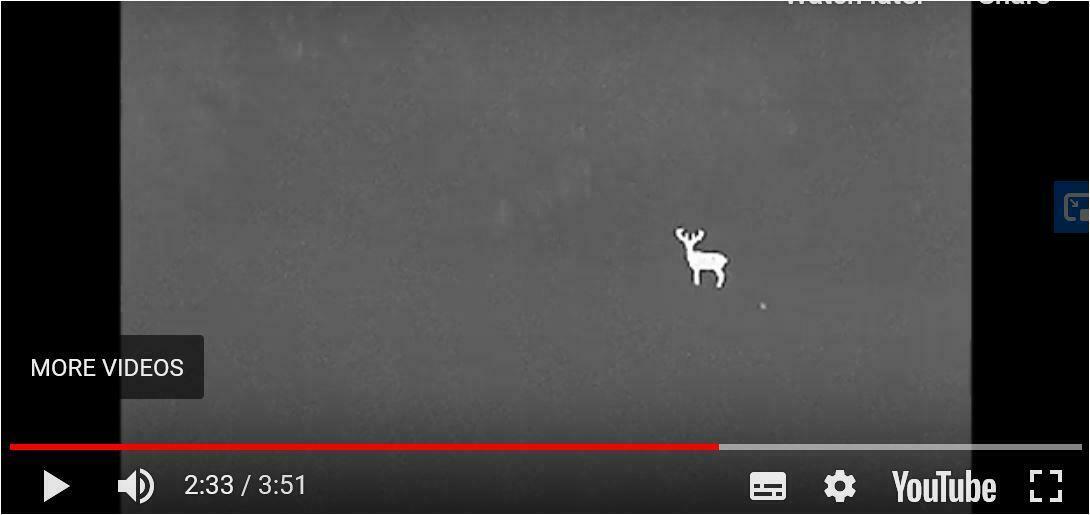

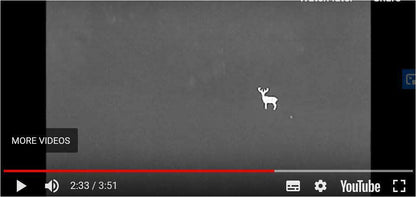

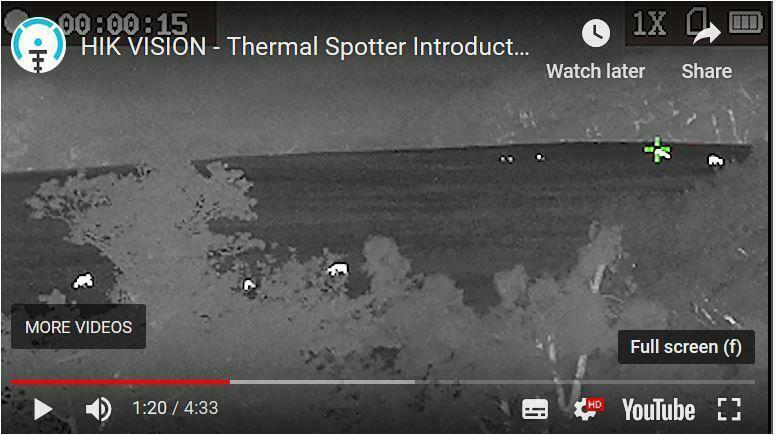

HIK VISION - Thermal Spotter Introduction https://youtu.be/AAIvu6wgUxw HIK VISION - T-Vision App Demonstration https://youtu.be/0rvdQsjGIrY Who is HIK VISION? https://youtu.be/mnoznhu4A0M
