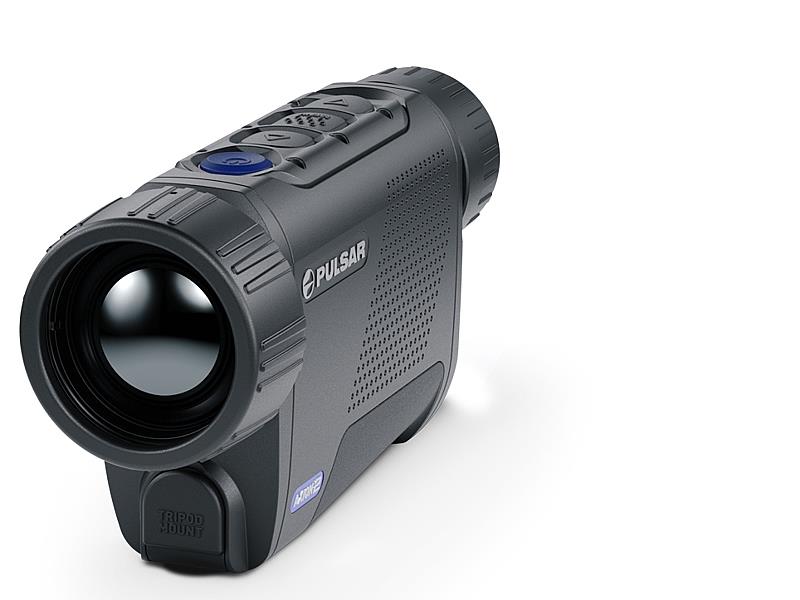

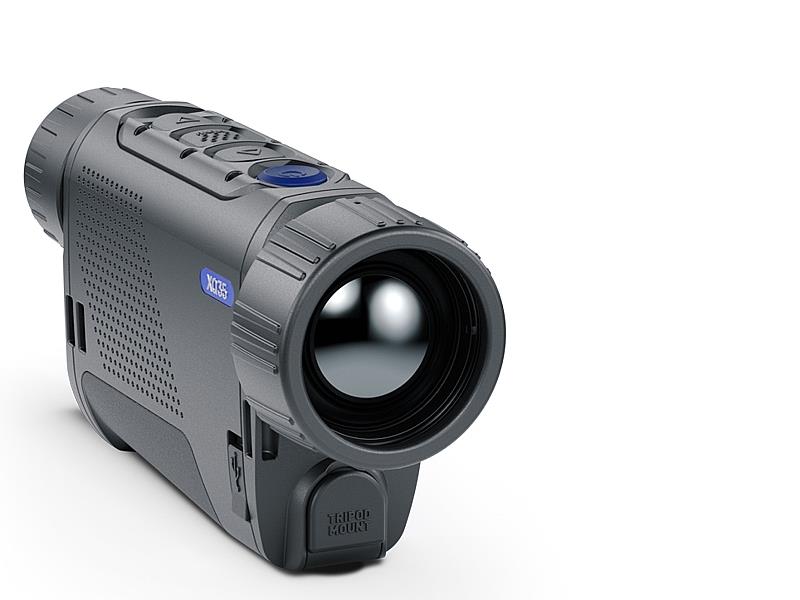

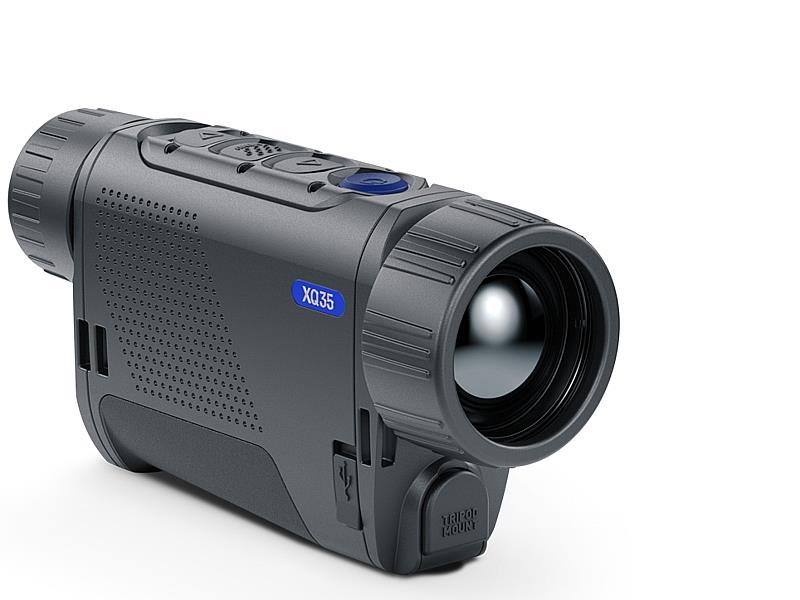

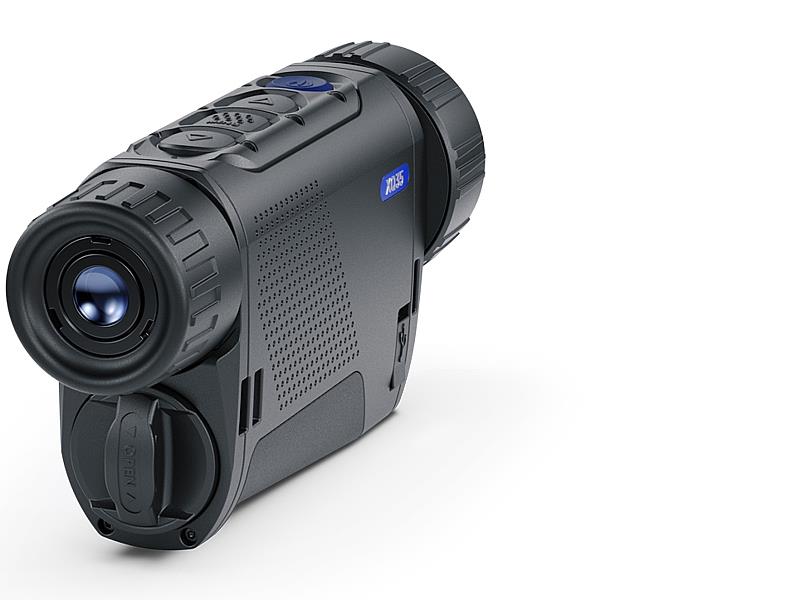

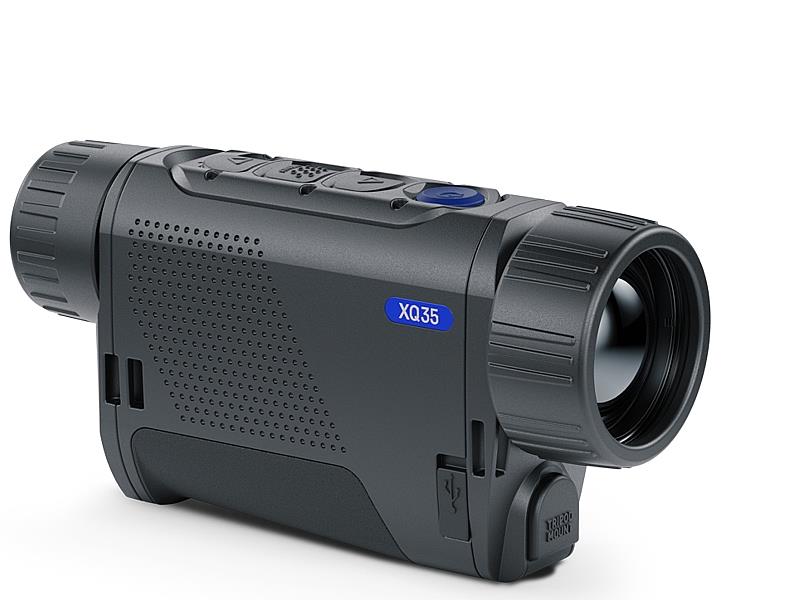

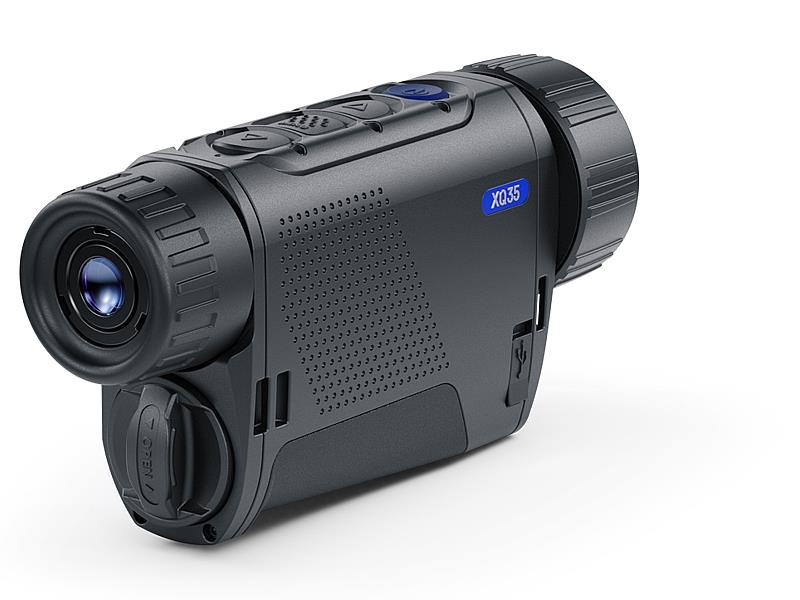

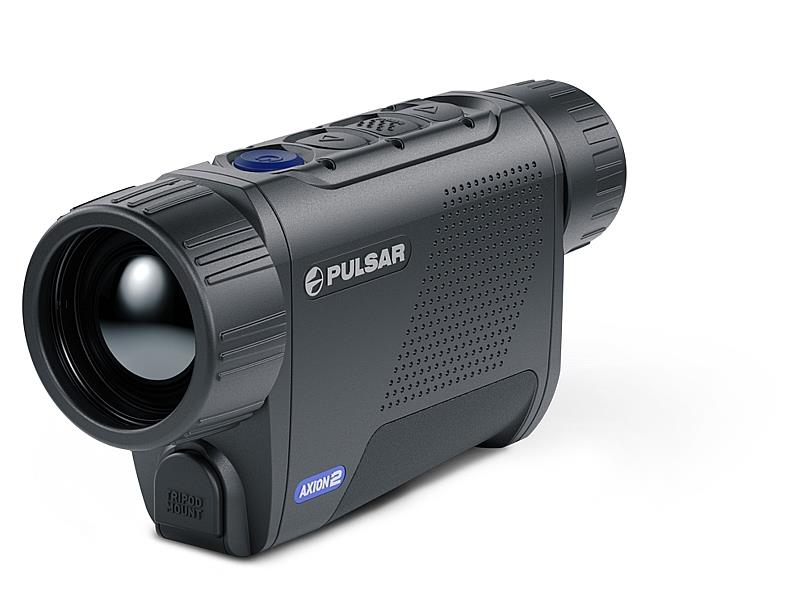

Pulsar Axion 2 XQ35 Thermal Monocular

• European Lynred 384x288, 17 µm sensor
• Long detection range of 1.8m tall object up to 1300m
• Fast start up within 5 seconds
• Up to 11 hours battery life on a single charge
• Built in video and still image recorder
• Variable magnification from 2x - 8x
• High contrast VGA resolution AMOLED display
• Picture in Picture (PiP) mode
• Stream Vision 2 compatible
• Fast aperture lens F35/1.0
• Wide angle eyepiece
• Built-in WiFi module
• 8 colour palettes
• IPX7 waterproof

The next step for the Axion series, the Axion 2 XQ35 features an F35/1.0 fast aperture lens, greatly improved image quality, extended battery life offering up to 11 hours of power on a single charge, improved algorithms, and an impressive 2.4/5GHz WiFi range. And to top it all off, the Axion 2 thermal imaging monocular is now compatible with Stream Vision 2.

With a wide range of features packed into a compact and lightweight design, this thermal imaging monocular is easy to grip and can be comfortably operated no matter whether the user is right or left-handed thanks to the symmetrical design with an in-line button arrangement on the upper panel.

Highly Sensitive Lynred 384x288 17 µm Sensor

The Axion 2 XQ35?s highly sensitive European Lynred 384x288 17 µm thermal imaging sensor, combined with a powerful Germanium F35/1.0 objective lens, provides an impressive 1300m detection range of a standard 1.8m object in total darkness, even under difficult conditions such as fog, rain, and high levels of humidity.

Magnesium Alloy Housing

Despite its compact size, this thermal imaging monocular has been designed with constant, often hard, use in mind. The magnesium alloy housing, though extremely light, is also incredibly strong, reliably protecting the Axion 2 XQ35?s internal components from shocks, drops, moisture, heat, or cold. The metal housing also acts as a heat sink, removing the heat from the electronics, minimising image noise, and increasing device operation consistency over long periods of observation.

IPX7 Waterproof

The Axion 2 XQ35?s IPX7 waterproof rating means that this thermal imaging monocular will work in heavy rain, high humidity, and will even withstand immersion in water to a depth of 1 meter for up to 30 minutes.

Fast Aperture F35/1.0 Lens

The fast aperture Germanium F35/1.0 lens features high infrared transmission in the LWIR range and, thanks to the high precision manufacturing optical elements within the lens, the Axion 2 XQ35 will produce an image detail that is clear and well distinguished.

Enhanced Image Processing

Enhanced image processing algorithms within the Pulsar Axion 2 XQ35 provide high quality rendering of both target objects and background. Three available levels of signal amplification, combined with a connected smoothing filter and fine brightness and contrast adjustments, provide the user with greater opportunities in terms of long-range detection of an animal and its extremities under a variety of different weather and temperature conditions.

Up to 11 Hours Battery Life

When it comes to power, don?t let the size of the Axion 2 XQ35 fool you… The APS5 rechargeable battery offers up to 11 hours of battery life on just a single charge (dependant on temperature). Removing and replacing the battery is possible in just seconds thanks to the intuitive design, and recharging is as simple as placing the battery into its charging dock, or plugging directly into a PC or household power system via a USB-C cable.

Variable Magnification

The base magnification of this thermal monocular increases by four times at 2x - 8x, with a zoom which can change either gradually by 2x steps, or continuously, allowing the user to set the ideal magnification ratio and visible field of view to suit any situation.

AMOLED Display

The Axion 2 XQ35 includes a high contrast VGA-resolution AMOLED display, which features enhanced colour rendering to provide a clear and smooth picture whilst on-the-move.

Picture in Picture (PiP) Mode

Picture in Picture (PiP) mode allows the user to display a zoomed in zeroing frame at the top of the display, in which the observation area can be magnified by x2 or x4, whilst simultaneously retaining visual control over the entire field of view.

8 Colour Palettes

A choice of eight colour palettes provides the user with the ability more effectively observe their field of view, optimising the Axion 2 XQ35 for specific tasks and allowing it to react to changing observation conditions. For object detection, White Hot, Black Hot, and Red Hot are most effective; Rainbow and Ultramarine is best for object recognition and identification; and Red Monochrome, Sepia, and Violet are most suitable for long observation periods in darkness.

Built-In Video & Still Image Recorder

Capture once-in-a-lifetime moments with built-in video and still image recording capabilities. The Axion 2 XQ35?s internal memory is capable of storing hours of videos and tens of thousands of still images at just the touch of a button.
Footage is easily copied onto a computer using a USB-C cable, or, with the built-in WiFi module and Stream Vision 2 connectivity, the user can easily view and share memorable moments of their hunt straight from the cloud.

Stream Vision 2

Connecting the Stream Vision 2 mobile app will provide a variety of intuitive features and functionalities, including the ability to use your mobile phone or tablet as a second screen, remote control of digital functions, viewing and sharing videos and still images, remotely installing all the latest firmware updates, and much more. What?s more, users will receive a generous 16GB of free cloud storage in which to keep their video recordings and still images. The app is available for Apple and Android devices on the Apple AppStore and the Google Play Store respectively.

The Axion 2 XQ35 will compliment the standard smartphone 2.4 GHz WiFi frequency range with an effective 5 GHz connection range, vastly improving the bandwidth and connection stability, as well as providing a faster rate of data transfer and noise immunity, all for more a more reliable operation of thermal imager and smartphone.
